Micromate

Seamlessly record vibration, sound/noise level, or air overpressure with just one monitoring unit. The Micromate was custom engineered with a rugged and reliable design to withstand harsh conditions, including water-resistance. Experience zero deadtime that includes 10 to 15 days of uninterrupted monitoring with the provided internal battery. The Micromate’s 15 MB of memory can store up to 1,000 events, upgradeable to 4,000 events with the extended 60 MB memory option.

The Micromate is light and portable. It is small enough to fit in the palm of your hand and features a high resolution color touchscreen display with a QWERTY keypad. It features a built-in USB port so you can easily connect a USB flash drive to transfer events or even update the unit’s firmware – quickly, easily and all in the field without the need of a computer.

The Micromate comes with three channels for a triaxial geophone and one channel for an air overpressure or sound level microphone. Each base unit is coupled with a geophone and configured to meet one of the following industry standards: International Society of Explosives Engineers (ISEE-2017), Deutsches Institut für Normung (DIN 45669-1), Swedish Blasting (SS4604866), and Swedish Pile Driving (SS025211).

View Sensors & Accessories

Micromate with sound level microphone attached
Micromate boot and case
Micromate with Boot
Grey ISEE geophone
Stacked views of both ends of Micromate unit
Micromate installed on wall in the field
Micromate with sound level microphone attached
Micromate boot and case
Micromate with Boot
Grey ISEE geophone
Stacked views of both ends of Micromate unit
Micromate installed on wall in the field

Features

alt
Touch-Screen Display

The Micromate features a touch screen display with large, high resolutions graphics, and a keypad. The full display touch screen QWERTY keyboard makes entry of data and notes convenient and easy.

Expansive Memory

Includes an internal, non-volatile memory of 15 MB that can store up to 1000 events. An optional upgrade increases the memory to 60 MB for a storage capacity of over 4000 events.

Real-Time OS

Feel confident knowing that you will never miss an event. If the event lasts longer than the preconfigured record time, the Micromate will continue to capture the event. Trigger once, but capture each and every event while keeping your sample size small.

alt
Built-In USB

Standard on every Micromate unit is a USB port with operating speeds of up to 12 MBps. Connect a USB flash drive to transfer events or even update the unit’s firmware – quickly, easily and all in the field without the need for a computer. Choose the optional auxiliary port and get additional support for remote alarms, external wire triggers and more! With the Micromate, the possibilities are endless.

Rugged and Reliable Design

The Micromate is built to last. The main unit comes with a fully sealed top panel. The non-corrosive fully sealed industrial grade connectors are labeled and color coded for easy identification and installation. Custom molded housings for the base unit are made of superior impact polycarbonate. An optional protective “boot” provides the highest level of durability and ruggedness available in Instantel’s product line. The operating temperature range is -40°C to 55°C (-40°F to 131°F). Reliability is at the core of everything Instantel makes!

Flexible Power Solutions

Experience 10 to 15 days of uninterrupted monitoring with its internal battery. The battery life can easily be extended by connecting a solar panel or an external battery and is ideal for remote or permanent installations.

Sensor Options

  • ISEE Triaxial Geophone (2-250 Hz)
  • DIN Triaxial Geophone (1-315 Hz)
  • Swedish Blasting Geophone (5-300 Hz)
  • Swedish Pile Driving Geophone (2-150 Hz)
  • ISEE Triaxial Borehole Geophone (2-250 Hz)
  • DIN Triaxial Borehole Geophone (1-315 Hz)
  • ISEE Linear Microphone (2-250 Hz)
  • Sound Level Microphone (Class 1)

Dimensions

101.6 x 135.1 x 44.5 mm (4.15 x 5.32 x 1.75 in)

Unit Weight

0.5 kg (1.1 lbs)

Battery

10 day rechargeable lithium ion (optional 15 day battery upgrade available)

User Interface

10 domed tactile with separate keys for common functions

Display

QVGA, 320 x 240 color touch screen

PC Interface

USB

Auxiliary Inputs and Outputs

External Trigger and Remote Alarm (factory installed option)

Environmental

  • LCD Operating Temperature: -10 to 55 °C (14 to 131 °F)
  • Electronics Operating Temperature: -40 to 45 °C (-40 to 113 °F)
  • Operating Temperature: -40 to 55 °C (-40 to 131 °F) (LCD screen saver enabled and set to a maximum time-out of 2 minutes (Without USB sensors).

Remote Communications

Supported modems: Sierra Wireless™ Airlink® RV-50, GX-400, LS-300.

Optional Feature

  • Printer: Precision high-resolution
  • GPS: Synchronize time and download coordinates
  • Vision (Cloud-based software): Provides stakeholders with secure, encrypted, access to event data, and allows instant sharing for time-sensitive projects.

Electrical Standards

CE Class B - The Micromate has been tested and passed IEC 61010-1:2010

Record Modes

Waveform, Waveform Manual, Histogram and Histogram-Combo™ (unit captures triggered waveforms while recording in Histogram mode)

Interested in purchasing a Micromate?

Crane and building construction site against blue sky
Remote monitoring enclosure in field
Three vibraseis trucks on edge of field
Pile driving area of construction zone
01
02
03
04

Relevant Case Studies

Metal fence around monitoring equipment

Nova Lima, Brazil

Vargem Grande Mine

An automated remote access vibration monitoring system protects the structural integrity of a tailings dam.

Read More

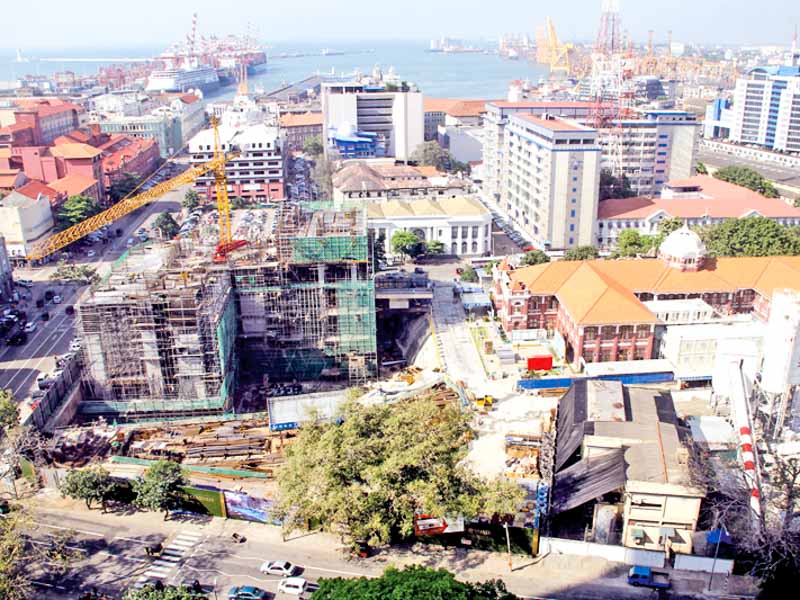

Aerial view of The One construction
