Minimate Pro

Experience a unique set of advanced monitoring capabilities when it comes to recording vibration, sound/noise level, or air overpressure. Designed to weather the most extreme conditions, the Minimate Pro can handle anything you can throw at it. The Minimate Pro features a rugged cast aluminum case with a waterproof rating of IP67, making it easy to monitor in wet conditions.

For those challenging applications, such as tunneling, the Minimate Pro includes EMI shielding and built-in noise and anti-aliasing filters to reduce noise and electrical interference.

The Minimate Pro allows you to never miss an event with its zero dead-time. Enjoy up to 10 days of uninterrupted monitoring with the provided internal battery and 64 MB of memory that can store up to 8,000 events, upgradeable to 32,000 events with the extended 240 MB memory option.

The Minimate Pro also boasts advanced recording and reporting features. An arsenal of advanced sensors enhance its monitoring capabilities, recording up to 65,536 samples per second on all channels.

Configure the base unit to one of the following industry standards: International Society of Explosives Engineers (ISEE-2017) or Deutsches Institut für Normung (DIN 45669-1).

View Sensors & Accessories

Minimate Pro product image
Informational graphic of Minimate Pro
Minimate Pro with two geophones and logo below
Minimate Pro with accessories attached and logo below
Minimate Pro6 side view with logo
Close up of ports on power side of Minimate Pro unit
Minimate Pro product image
Informational graphic of Minimate Pro
Minimate Pro with two geophones and logo below
Minimate Pro with accessories attached and logo below
Minimate Pro6 side view with logo
Close up of ports on power side of Minimate Pro unit

Features

Reduce Noise & Electrical Interference

For those challenging applications, such as tunneling, the Minimate Pro monitoring units include EMI shielding and built-in noise and anti-aliasing filters; both the sensor and auxiliary channels are isolated.

Rugged & Reliable Design

With a cast aluminum case and a waterproof rating of IP67, the Minimate Pro is rugged and reliable. Designed to handle the most extreme conditions, the Minimate Pro can handle anything you can throw at it.

Flexible Power Solutions

Experience 10 days of interrupted monitoring with its internal battery. The battery life can easily be extended by connecting a solar panel or external battery. Ideal for remote or permanent solutions.

Real-Time OS

Feel confident knowing that you will never miss an event. If the event lasts longer than the preconfigured record time, the Minimate Pro will continue to capture the event. Trigger once, but capture each and every event while keeping your sample size small.

Ethernet

Connect modems directly to a Minimate Pro unit using an Ethernet cable to transfer events using Instantel’s proprietary Auto Call Home feature. The Minimate Pro’s Ethernet capability lets you transfer events more quickly, especially when transferring larger event files. Transfer events to your computer, a server or a cloud-based data hosting system, like Instantel’s Vision. Add in THOR, Instantel’s desktop software solution, and automatically get notifications when you want them.

Advanced Monitoring Features

Do more than just standard compliance monitoring. With the Minimate Pro Series you can connect accelerometers, high frequency geophones, hydrophones or high pressure microphones. Use an Instantel splitter box, and connect up to six hydrophones on one Minimate Pro6! Take advantage of sample rates from 512 to 65,536 samples per second and the 65 kHz sample rate and get sound playback when you connect a Sound Level Microphone.

Sensor Options

  • ISEE Triaxial Geophone (2-250 Hz)
  • DIN Triaxial Geophone (1-315 Hz)
  • DIN Triaxial Geophone (1-80 Hz) (Vibration Dose Value)
  • High Frequency Triaxial Geophone (30 -1000 Hz)
  • ISEE Triaxial Borehole Geophone (2-250 Hz)
  • DIN Triaxial Borehole Geophone (1-315 Hz)
  • High Frequency Triaxial Borehole Geophone (30-1000 Hz)
  • ISEE Linear Microphone
  • Sound Level Microphone (Class 1)
  • High Pressure Microphone (up to 69 kPa, 10 psi)
  • Hydrophone (8-500 Hz, up to 324 kPa, 47 psi)
  • 0.5g Accelerometer (0.5-500 Hz)
  • 50g Accelerometer (1-3000 Hz)
  • 500g Accelerometer (1-3000 Hz)

Dimensions

25.4(l) x 11.75(w) x 10.80(h) cm (10.00 x 4.63 x 4.25 in)

Unit Weight

2.27 kg (5 lbs)

Battery

10 Days

User Interface

10 domed tactile with separate keys for common functions

Display

7-line x 32-character, high-contrast, backlit LCD

PC Interface

Ethernet® cable, supplied, for PC to unit connection or RS-232 with an optional USB adapter

Auxiliary Inputs and Outputs

External Trigger and Remote Alarm (factory installed option)

Environmental

  • LCD Operating Temperature: -20 to 45 °C (-4 to 113 °F)
  • Electronics Operating Temperature: -40 to 45 °C (-40 to 113 °F)
  • Water Resistance: IP67 – submerse to 30 cm (1 ft) for 24 hours

Remote Communications

Supported modems: Sierra Wireless™ Airlink® RV-50, GX-400, LS-300.

Optional Features

  • GPS: Factory installed, for time synchronization event data.
  • Vision (Cloud-based software): Provides stakeholders with secure, encrypted, access to event data, and allows instant sharing for time-sensitive projects

Electrical Standards

CE Class B. The Minimate Pro has been tested and passed IEC 61010-1:(2nd ed. 2001)

Record Modes

Waveform, Waveform Manual, Histogram and Histogram-Combo™ (unit captures triggered waveforms while recording in Histogram mode)

Storage Capacity

64 MBs. Optional 240 MBs.

Interested in purchasing a Minimate Pro?

Quarry cliff explodes during blasting
Bubble curtain underwater
Minimate Pro and ISEE geophone installed on construction site wall
Bullet train pulls into Tokyo station
01
02
03
04

Relevant Case Studies

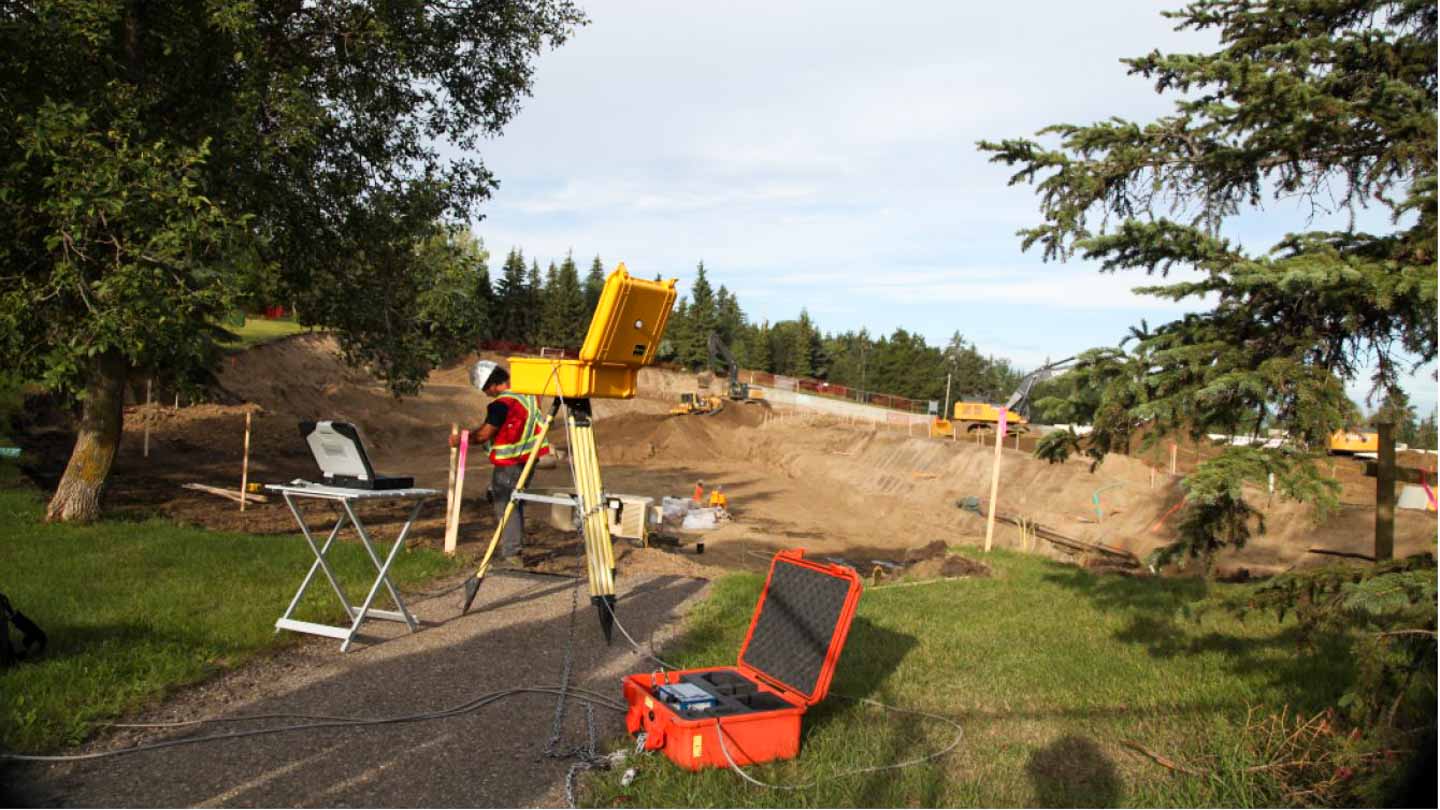

Construction site in Edmonton, Canada

Edmonton, Canada

Identifying Vibration Complaints

Camera helps identify sources of vibration complaints in city of Edmonton, Canada.

Read More

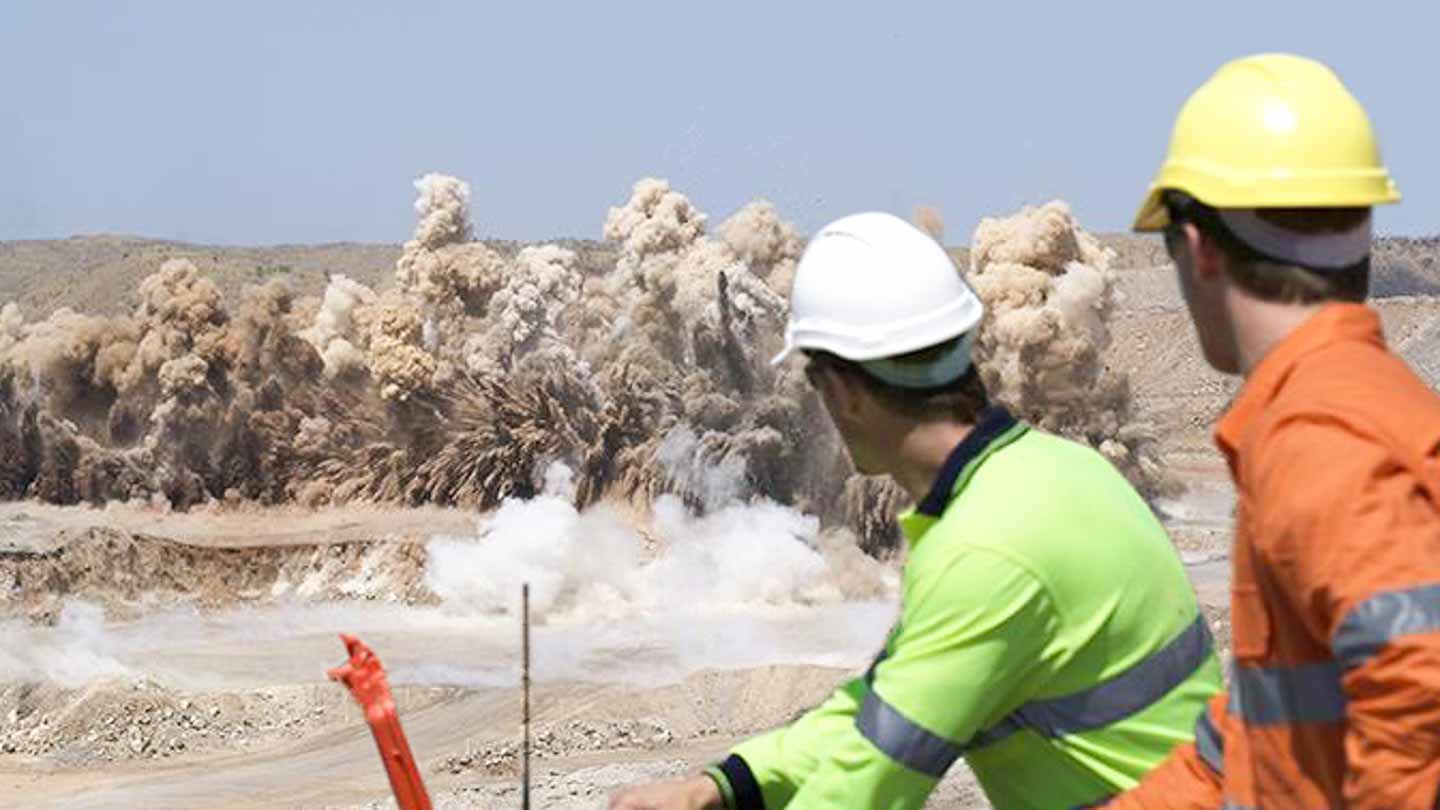

Construction workers detonate explosion
