Advanced Sensors & Accessories

Our sensors are rugged, reliable and built to last. Each advanced sensor is designed, manufactured and calibrated by Instantel.

Our advanced sensors, such as the high frequency geophones and hydrophones, require a monitoring unit, like the Minimate Pro, that can record higher sample rates. Higher sample rates offer more granularity in the event data and a better representation of the sensor's measured data. Instantel's desktop software, THOR, with advanced features, is required for reviewing and analyzing the events with advanced sensors.

Minimate Pro Sensors

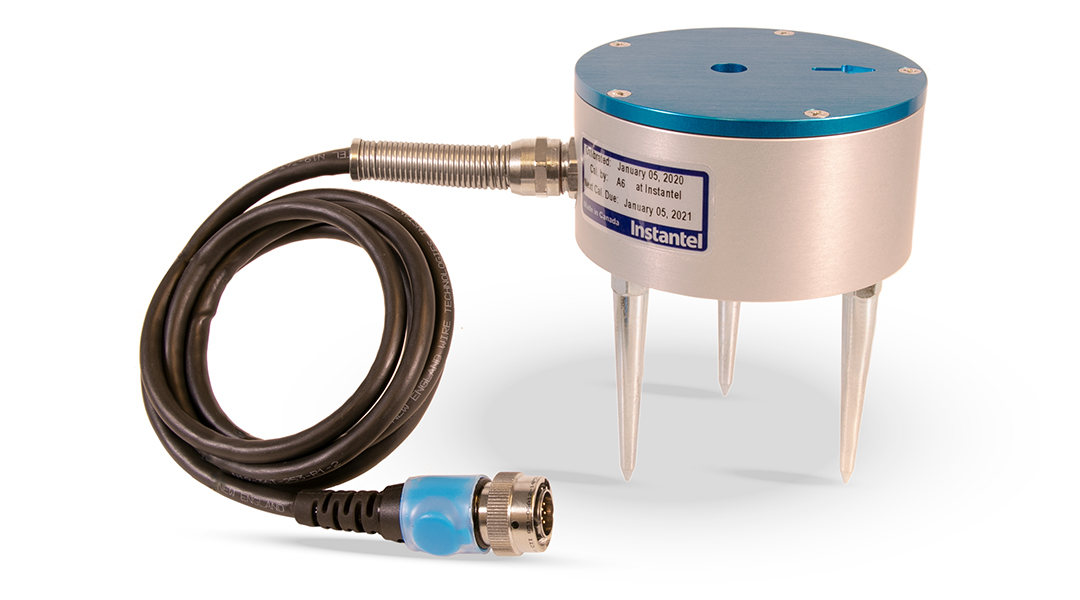

Minimate Pro4/6 Vibration Dose Value (VDV) Triaxial Geophone

Minimate Pro4/Pro6 Vibration Dose Value (VDV) Triaxial Geophone

  • 1-80 Hz geophone calibrated to the DIN 45669-1 standard.
  • Select the geophone cable length: 2 m (6.5 ft) or 8 m (26 ft).
  • Includes mounting spikes.
  • Note: The VDV functionality requires THOR Advanced software.

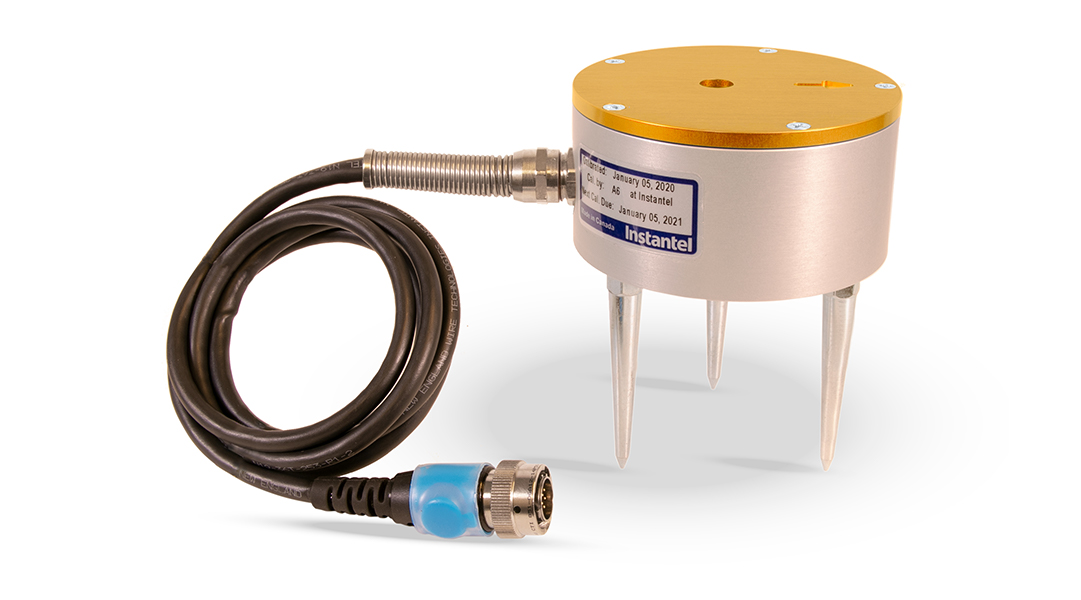

Minimate Pro High Frequency Triaxial geophone

Minimate Pro4/Pro6 High Frequency Triaxial Geophone

  • 30-1000 Hz geophone.
  • For near-field monitoring with a range up to 2540 mm/s (100 in/s).
  • Includes a 2 m (6.5 ft) cable.
  • Includes mounting spikes.
  • Note: Requires THOR Advanced software

Specification Sheet

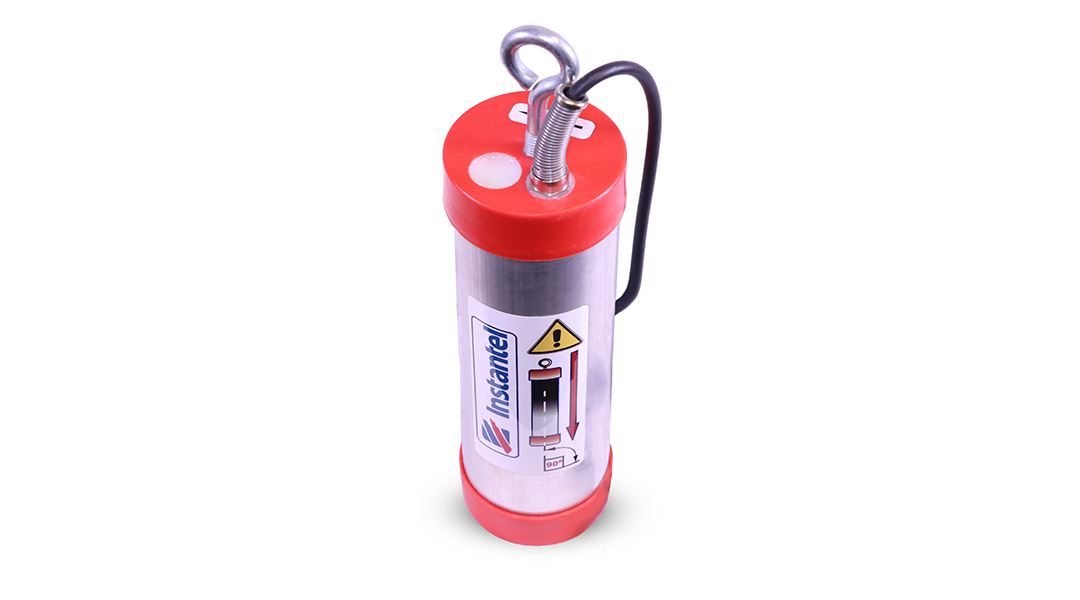

High Frequency Triaxial borehole Geophone

Minimate Pro4/Pro6 High Frequency Triaxial Borehole Geophone

  • 30-1000 Hz geophone for near-field monitoring.
  • 64 mm (2.5 in) borehole geophone with 30 m (100 ft) cable.
  • Note: Requires a 76 mm (3 in) minimum diameter borehole for installation.
  • Note: Requires THOR Advanced software.

Specification Sheet

High Pressure Microphone

Minimate Pro4/Pro6 High Pressure Microphone

  • Measures air overpressure in close proximity or confined blasting situations.
  • Includes a 2 m (6.5 ft) cable, microphone stand and windscreen.
  • Note: Requires THOR Advanced software

Instruction / Specification Sheet

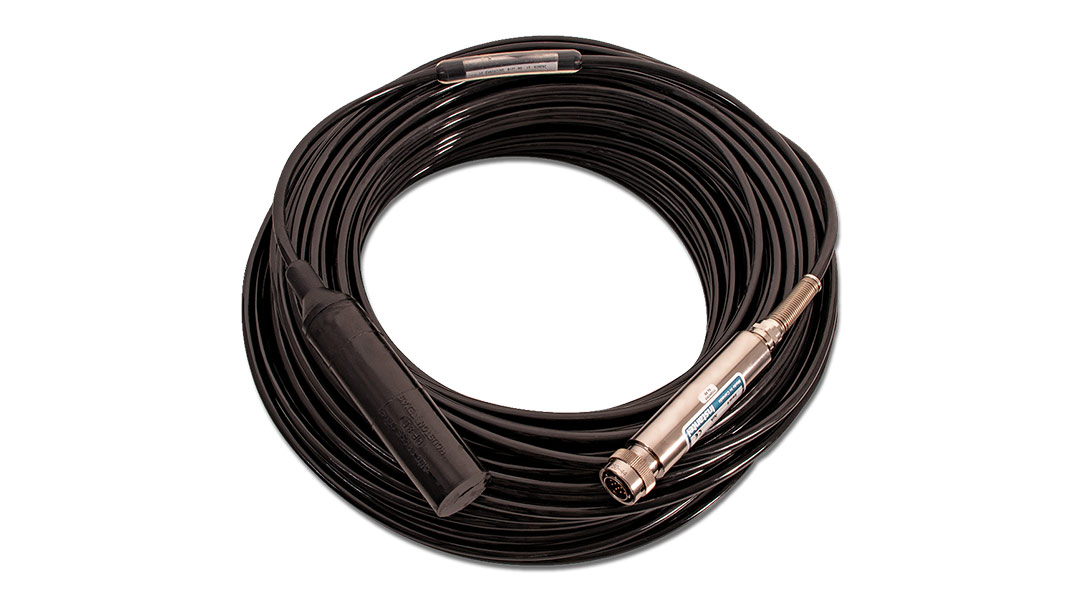

Hydrophone

Minimate Pro4/Pro6 Hydrophone

  • 8 - 500 Hz geophone.
  • Measures overpressure in water.
  • Includes a 60 m (200 ft) cable.
  • Note: Requires THOR Advanced software.

Instruction Sheet

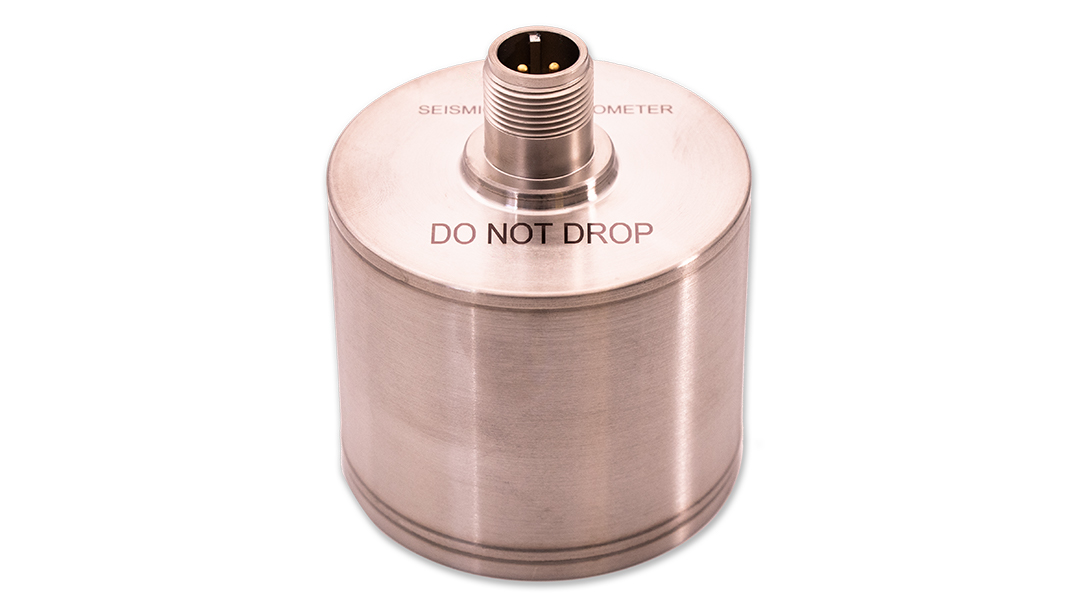

Accelerometer 0.5g

0.5 g Accelerometer

  • 0.5 - 500 Hz.
  • Measures low frequencies and accelerations for sensitive applications.
  • Package includes one Cable For 0.5 g Accelerometers.
  • Requires either: Uniaxial or Triaxial Accelerometer Adaptor Cable.
  • Note: Requires THOR Advanced software.

Specification Sheet

500g accelerometer

500 g Accelerometer

  • 1- 3000 Hz.
  • Measures accelerations of up to 500 g for near-field blasting applications.
  • Package includes one Cable For 50 g & 500 g Accelerometers
  • Requires either: Uniaxial or Triaxial Accelerometer Adaptor Cable.
  • Note: Requires THOR Advanced software.

Specification Sheet

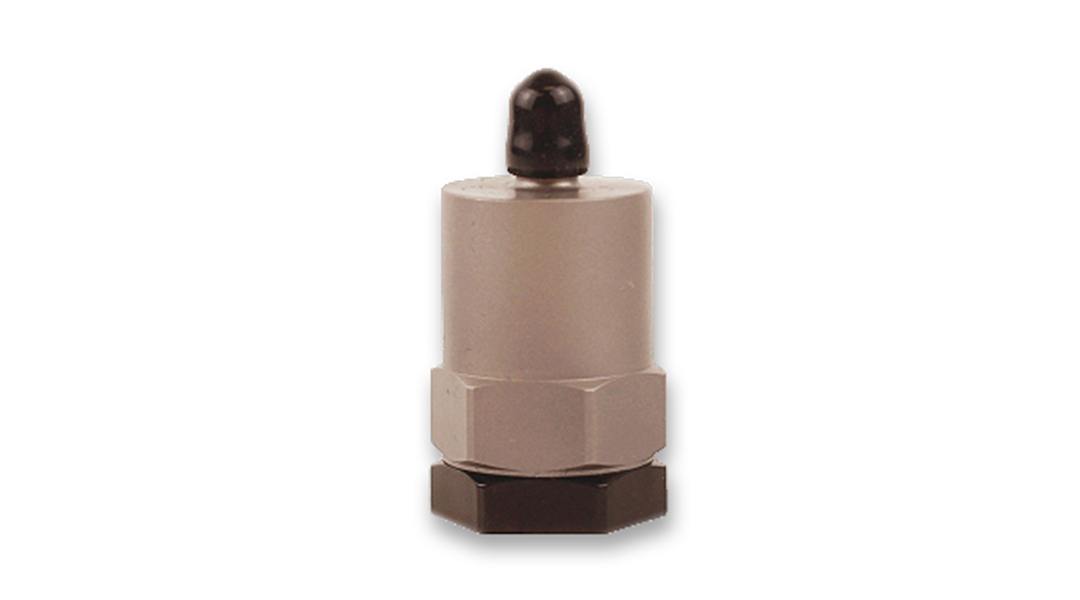

50g accelerometer

50 g Accelerometer

  • 1- 3000 Hz.
  • Measures accelerations up to 50 g for near-field blasting applications.
  • Package includes one Cable For 50 g & 500 g Accelerometers
  • Requires either: Uniaxial or Triaxial Accelerometer Adaptor Cable.
  • Note: Requires THOR Advanced software.

Specification Sheet

Minimate Pro Series Accessories

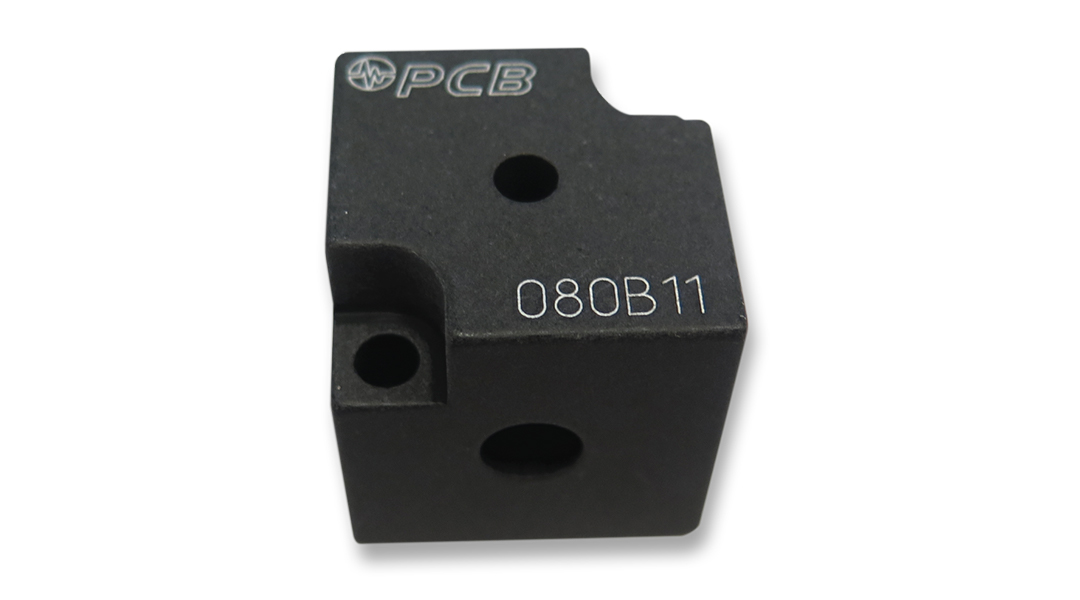

Accelerometer Triaxial Mounting Block (50 g & 500 g)

Accelerometer Triaxial Mounting Block (50 g & 500 g)

  • Used to mount up to three uniaxial accelerometers to measure in a triaxial configuration.
  • For use with 50 g or 500 g accelerometers.

Instruction Sheet

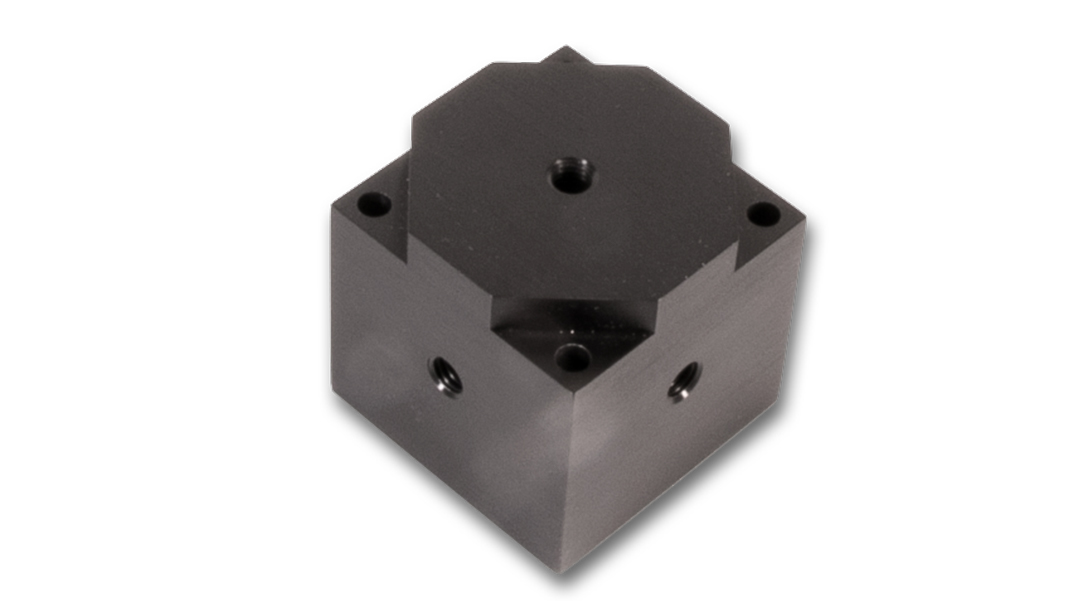

Accelerometer Triaxial Mounting Block (0.5 g)

Accelerometer Triaxial Mounting Block (0.5 g)

  • Used to mount up to three uniaxial accelerometers to measure in a triaxial configuration.
  • For use with 0.5 g (P/N: 714A7101) accelerometers.

Instruction Sheet

Minimate Pro Series Cables

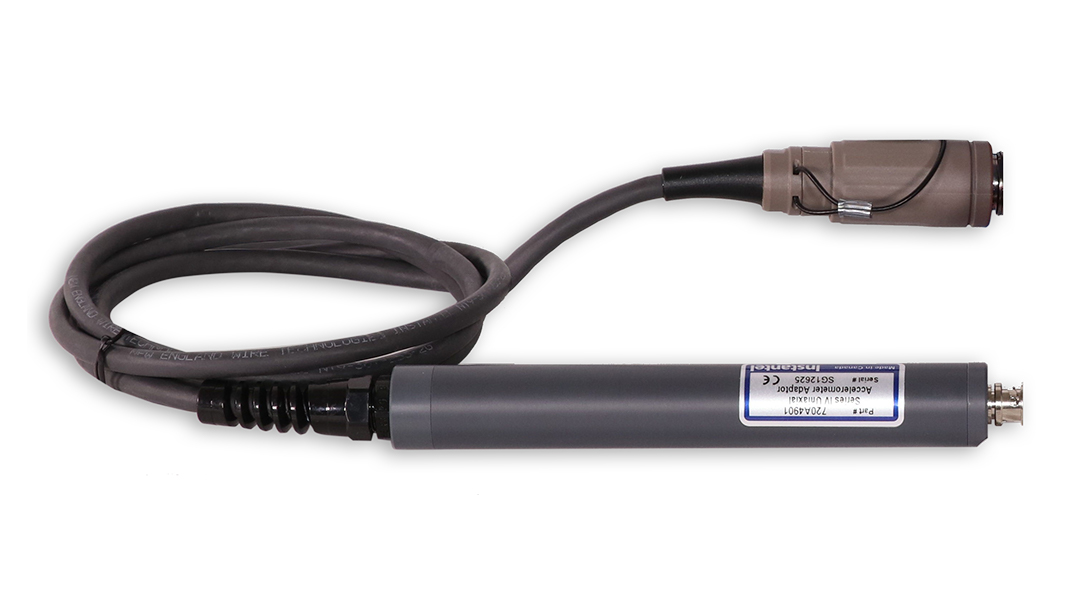

Uniaxial Accelerometer Adapter cable

Uniaxial Accelerometer Adapter Cable

  • Includes a 2 m (6.5 ft) cable that provides power from a Minimate Pro monitoring unit to operate an accelerometer

Instruction Sheet

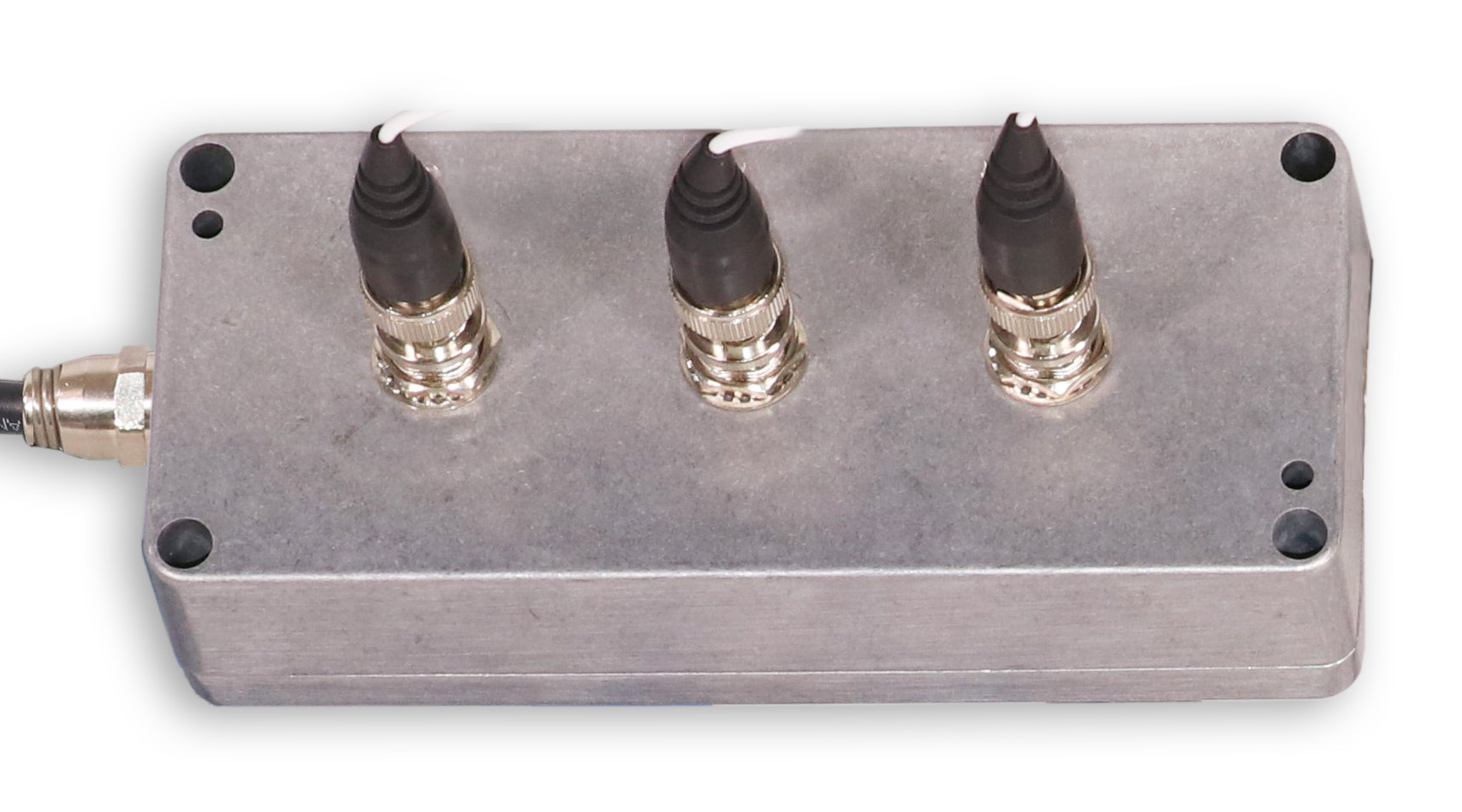

Triaxial Accelerometer Adapter Cable

Triaxial Accelerometer Adapter Cable

  • Includes a 2 m (6.5 ft) cable that provides power from a Minimate Pro monitoring unit to operate up to three accelerometers in a uniaxial configuration.

Instruction Sheet
