Sensors & Accessories

Instantel offers a wide range of sensors for the Micromate and Minimate Pro monitoring units.

Instantel offers a wide range of sensors for the Micromate and Minimate Pro monitoring units - measuring variables such as vibration, noise and air overpressure. Our sensors are rugged, reliable and built to last. From our SmartGeos to our advanced sensors, each sensor is designed, manufactured and calibrated by Instantel.

Our advanced sensors, such as the high frequency geophones and hydrophones, require a monitoring unit, like the Minimate Pro, that can record higher sample rates. Higher samples rate offer more granularity in the event data and a better representation of the sensors measured data. Instantel’s desktop software, THOR, with advanced features, is required for reviewing and analyzing the events recorded with advanced sensors.

Below is a list of the sensors and accessories available from Instantel. Our advanced sensors have been denoted with an asterisk (*). For additional information and specifications on the sensors Instantel has available, please review the sensor guide or contact Instantel. Our team is here to find the solution that meets your monitoring needs.

Sensor Guide   Guide des capteurs   Guia de sensores   Sensorguide

Contact Sales

The Micromate triaxial Geophones measure ground vibration in three planes: vertical, transverse and longitudinal. There are four geophones compatible with the Micromate monitoring unit. Each geophone measures a unique frequency range conforming to standards such as the ISEE, DIN, Swedish blasting and Swedish pile driving specifications. For easy identification, the geophone lids are color-coded by standard.

The Micromate geophones measure ground vibrations induced by construction, blasting, mining, quarry and other operations. Since these vibrations can cause damage to property and structures, local, state and federal regulations govern the levels of vibration these activities can create. Monitoring the vibration levels with an Instantel geophone can help you adjust your vibration inducing activities before these limits are reached and concerns develop. It can also serve as a record to protect you against future claims and liability.

Each geophone is designed with an aluminum housing that stands up to the toughest conditions. The geophone can be bolted directly to hard surfaces or it can be spiked into a soft surfaces. The geophone connects directly to the color-coded geophone port on the Micromate monitoring unit and comes in cable lengths of 2m or 5m. While these cable lengths are standard, Instantel also offers custom cable lengths up to 1000 meters.

 ISEE GeophoneDIN GeophoneSwedish Blasting GeophoneSwedish Pile Driving Geophone
Product NameISEE GeophoneDIN GeophoneSwedish Blasting GeophoneSwedish Pile Driving Geophone
Compliance StandardISEE 2011 EditionDIN 45669-1 Class 1SS4604866, 2011SS025211
Frequency Range2 to 250 Hz1 to 315 Hz5 to 300 Hz2 to 150 Hz
Measurement RangeUp to 10 in/sUp to 10 in/s0.039 TO 9.84 in/s0.0039 TO 0.98 in/s

Meet the world's first smart geophone!

The Micromate SmartGeos are triaxial, to measure ground vibration in three planes: transverse, vertical and longitudinal. The SmartGeo can detect its position and automatically level and orient for accurate readings every time! Never again will you have to level your geophone, worry about specialized mounting equipment or keep track of which geophone is vertical mount and which is horizontal mount. The SmartGeo reduces the time and money you spend on installations.

There are two SmartGeos for the Minimate Pro monitoring unit. One that meets ISEE specifications and one that meets the DIN specifications. The lids of the geophone are color-coded for easy identification: silver for ISEE and blue for DIN. The cast aluminum housing of the SmartGeo can be bolted directly to hard surfaces or spiked in soft surfaces. The SmartGeo connects directly to the color- coded geophone port on the Micromate monitoring unit and comes standard in cable lengths of 2m or 5m. Custom cable lengths of up to 75m are also available. The SmartGeo is calibrated independently of the monitoring unit. It can work with any Micromate unit – making the SmartGeo the ultimate spare geophone.

 ISEE SmartGeoISEE SmartGeo
Product NameISEE SmartGeoDIN SmartGeo
Compliance StandardISEE 2011 EditionDIN 45669-1 Class 1
Frequency Range2 to 250 Hz1 to 315 Hz
Measurement RangeUp to 10 in/sUp to 10 in/s
ISEE Borehole Geophone

The triaxial Borehole Geophone is lowered into a borehole to measure ground vibration in three planes: vertical, transverse and longitudinal. Vibrations from construction activities, blasting and other applications can travel through the ground and cause damage to underground structures. The Borehole Geophone can be lowered into a hole to monitor the effects of the vibration directly next to the structure without the need for regression analysis. Monitoring vibrations with an Instantel geophone can prevent any damage done to underground sewers, tunnels, gas lines or other structures.

The Micromate Borehole Geophone is rugged and water resistant. The internal sensors are mounted in an aluminum case which is filled with epoxy to protect against contaminants commonly found in boreholes, like water, dust or dirt. The Micromate Borehole Geophone comes in two standard cable lengths: 30 meters (100 ft) and 75 meters (250 ft). The Borehole Geophone can also be custom built with up to 1000 meters of cable. It is compatible with any Micromate monitoring unit and can be calibrated to meet industry standards like the International Society of Explosive Engineers (ISEE), DIN, Swedish blasting or Swedish pile driving.

Product NameISEE Borehole GeophoneDIN Borehole GeophoneSwedish Blasting Borehole GeophoneSwedish Pile Driving Borehole Geophone
Compliance StandardISEE 2011 EditionDIN 45669-1 Class 1SS4604866, 2011SS025211
Frequency Range2 to 250 Hz1 to 315 Hz5 to 300 Hz2 to 150 Hz
Measurement RangeUp to 10 in/sUp to 10 in/s0.039 TO 9.84 in/s0.0039 TO 0.98 in/s

There are two microphones designed for the Micromate monitoring unit, so you can synchronize the recording of vibration with air overpressure or sound/noise.

The linear microphone is designed to measure air overpressure typically produced from blasting activities. Air pressure changes produced by blasting or demolition can be damaging to nearby structures. When levels are high enough, air overpressure can break windows, damage electronic equipment and set off car alarms. Understandably, when a home or building owner hears their windows rattle, they believe that their property is being damaged. The Micromate air overpressure microphone is designed to monitor these changes on a linear scale so you can be sure you are within industry guidelines. Recording of air overpressure can also be a best practice for construction companies, mines and quarries to protect against complaints or liability claims.

The Sound Level Microphone for the Micromate, also called a noise microphone, can perform unattended monitoring of noise in applications such as construction, traffic and quarries or open pit mining operations. Safe guidelines have been developed which provide limits on the level of noise that can be induced in urban environments or to protect the safety of nearby workers. The Sound Level Microphone meets the requirements for IEC 61672 Class 1 specifications, which include A and C weighted specifications.

The microphones for the Micromate connect directly to the color-coded microphone port on the monitoring unit. Each microphone comes with metal microphone stand for mounting and a 2m or 5m cable. Custom cable lengths of up to 75m are available upon request.

 Micromate Linear MicMicromate Sound Mic
Product NameLinear MicrophoneSound Level Microphone
DescriptionMeasures air overpressure on a linear scale.Measures noise or sound levels.
Compliance StandardISEE 2011 EditionIEC 61672 Class 1
Frequency Range2 to 250 Hz10 Hz to 20 kHz
Measurement Range2 to 500 Pa (0.00029 to 0.0725 psi)30 to 140 dB

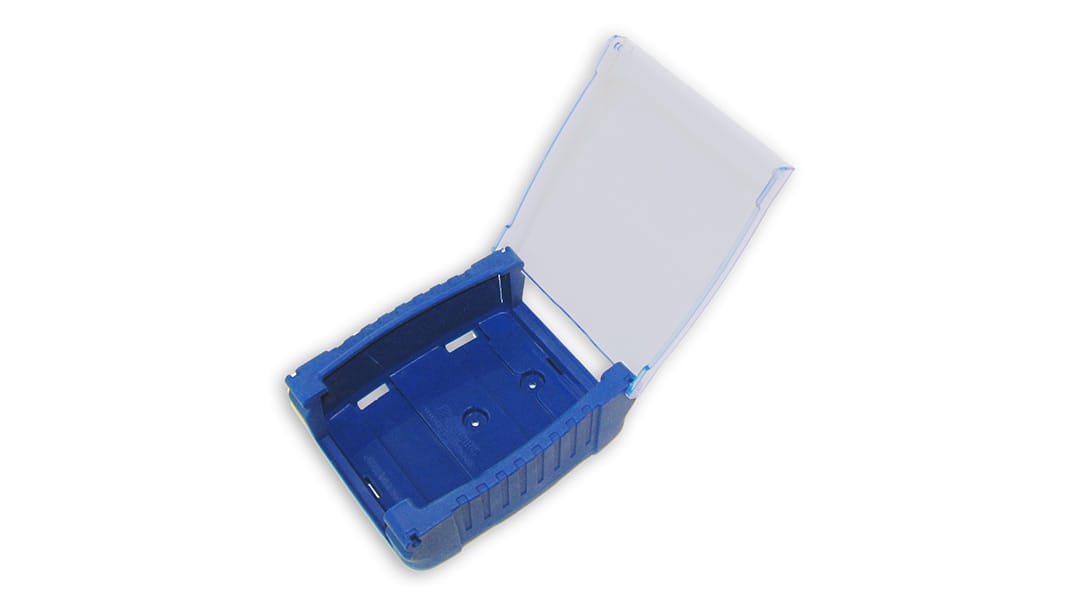

Micromate Rubber Boot

The protective boot and cover have been specifically designed to protect the Micromate unit and provide flexibility when mounting the unit. The robust protective boot and separate protective cover offer an easy-on, easy-off installation. The Micromate Boot can be mounted to a wall permanently and then when needed, the Micromate can easily be fit into the Boot.

The clear protective cover has been designed to hinge at either end. It protects the Micromate’s screen against damage and the elements while offering the operator easy access to the unit’s touch screen. The cover panel is designed to prevent water from pooling on the unit. Each end of the cover has a curved lip to help prevent drainage directly onto the connectors, while the sides drain to the outside of the boot.

The protective boot is made of a durable silicon based compound. This material has been designed to handle temperature extremes in excess of -50°C and 100°C (-58°F to 212°F) and still remain flexible. Construction sites, mines, quarries and other job sites are constantly changing and can often have adverse weather conditions. The Boot protects the Micromate unit from any accidental dropping, crushing or other impacts. The Micromate Protective Boot and Cover is an inexpensive way to protect your investment in the Micromate monitoring unit.

Instruction Sheet   Fiche d'instructions   Hoja de instrucciones   Instruktionsblad

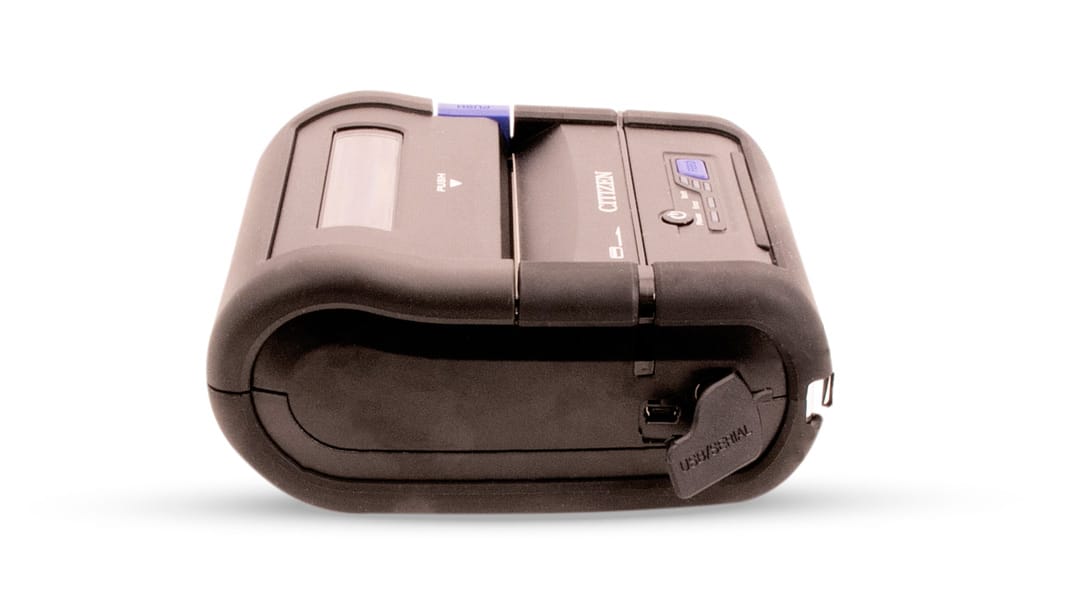

Micromate In-field Printer

Some monitoring applications require hard copy reports to be printed in the field. The Micromate provides a USB interface which can be used to connect an external printer for in-field printing. The Portable Printer is battery operated and can easily be transported to the site and connected to the Micromate to print the event reports right in the field.

Instruction Sheet   Fiche d'instructions   Hoja de instrucciones   Instruktionsblad

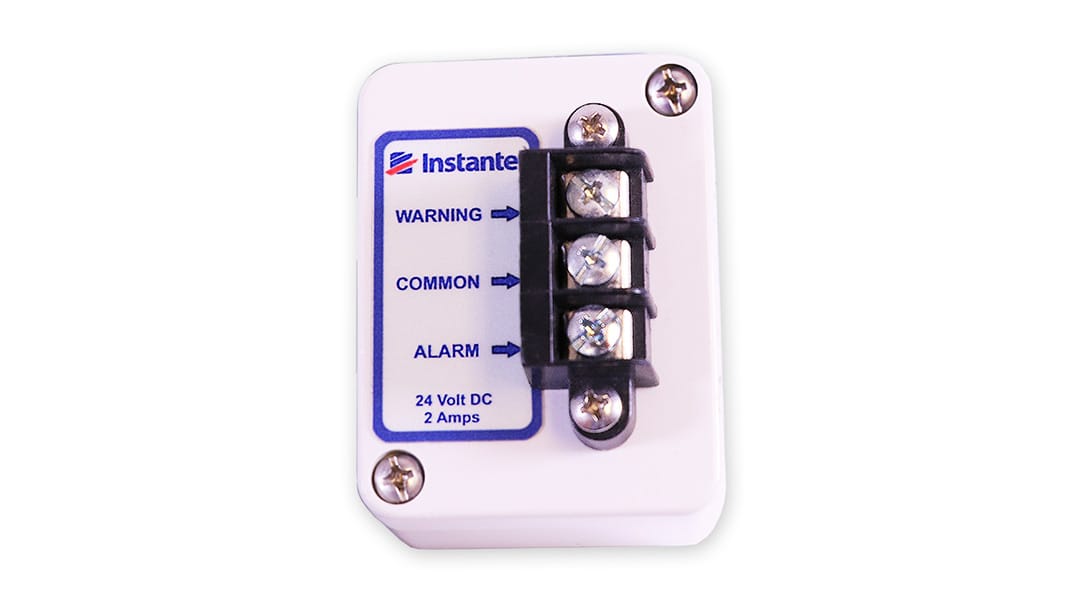

Micromate Remote Alarm Controller

The Remote Alarm Controller is used to indicate when the Micromate unit has exceeded the trigger levels you’ve configured. When you connect lights or sirens to the Remote Alarm controller, you can receive audible or visual alerts that your activities are near or have exceeded the trigger levels. Trigger levels on the Micromate can be set based on your project’s requirements and can be different for each job. With an early warning system, you can manage vibration or noise inducing activities before concerns develop.

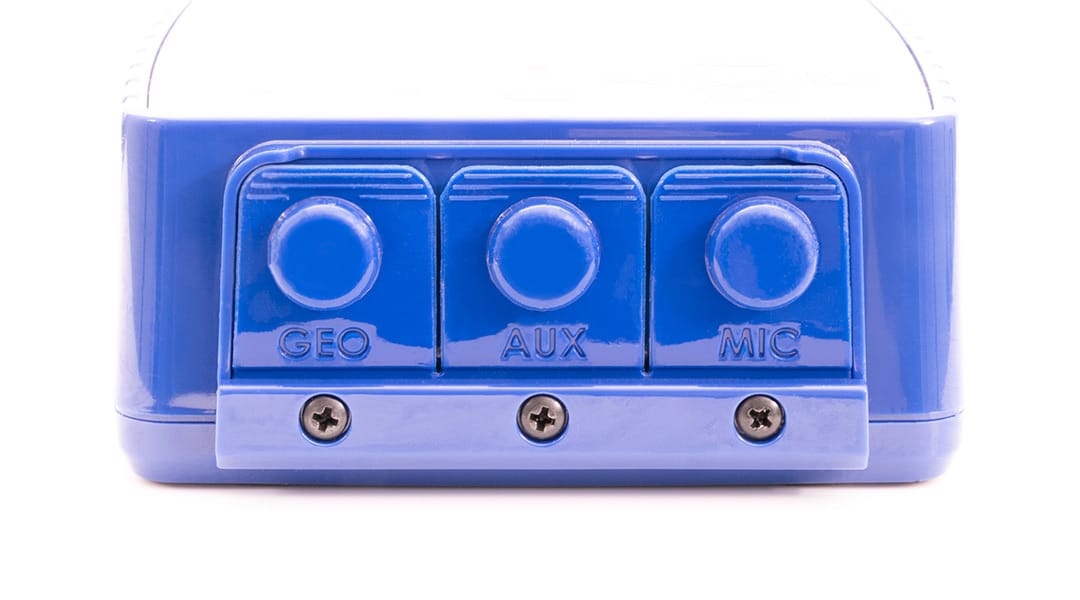

The Remote Alarm Controller connects to the auxiliary port on the Micromate monitoring unit, a factory installed option. The auxiliary port can be installed on existing Micromate units when they are returned to Instantel for calibration. The Remote Alarm Controller comes complete with a 2 m (6.5 ft) cable but it can also be used with Instantel’s 30 m (100 ft) or 75 m (250 ft) extension cables.

Instruction Sheet   Fiche d'instructions   Hoja de instrucciones   Instruktionsblad

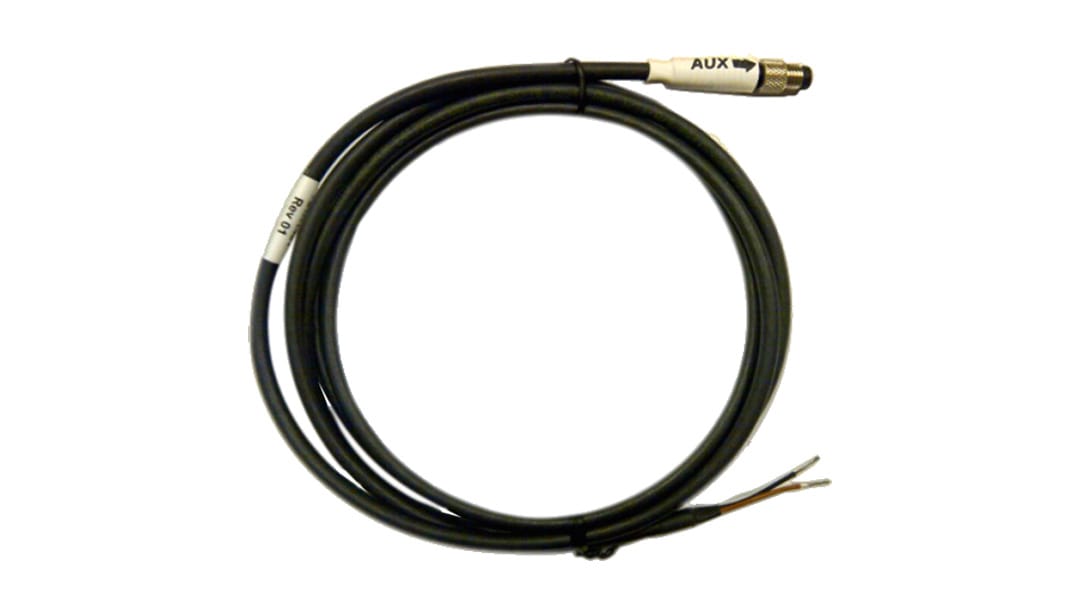

Micromate External Trigger Cable

The External Trigger Cable can be used to remotely trigger a Micromate unit or to synchronize the triggering of up to six units. At the end of the External Trigger Cable there are two leads; a change in the state of these leads will cause the Micromate unit to start monitoring. They can be connected to start and once that connection is broken, the unit will start to record, or they can be separated initially and when they make a connection the Micromate will start to record. The External Trigger Cable connects to the auxiliary port (factory installed option) on the Micromate unit and comes complete with a 2 m (6.5 ft) cable. The External Trigger Cable can also be used with Instantel’s 100 ft or 250 ft extension cables.

Application Examples

  • Twist the two leads together and use an energy source, such as a blast, to break the two leads apart, triggering the Micromate unit to start recording. Typically, the two leads are tied together and then wrapped around a detonator or explosive before being lowered into a borehole. When the explosives detonate, the two leads on the external trigger cable will break apart and automatically trigger the unit to start recording. This will give you time 0 or when the blast started. As each hole in the blast design is detonated it will create a peak in the waveform. Using time 0, you can calculate the time between each peak and compare it to the time delays between each hole and row in your blast design. You can then use this data to help you design a more controlled and precise blast.
  • Velocity propagation of the rock is a key part of blast design. Using the External Wire Trigger Cable you can measure accurate velocity propagation values from the rock you are blasting. The External Wire Trigger Cable can be used to synchronize event recordings on up to six monitoring units. After connecting an External Trigger Cable to each unit and tying their leads together, when one Micromate unit is triggered and begins recording, the other connected Micromate units will also begin to record. The time it takes for the vibration to travel from one Micromate unit to the next can be used to get an accurate velocity propagation value.

Instruction Sheet   Fiche d'instructions   Hoja de instrucciones   Instruktionsblad

The Minimate Pro triaxial Geophones measure ground vibration in three planes: vertical, transverse and longitudinal. There are four geophones compatible with the Minimate Pro monitoring unit. Each geophone measures a unique frequency range conforming to standards such as the ISEE and DIN specifications. For easy identification, the geophone lids are color coded by standard.

The ISEE and DIN geophones are used to measure ground vibrations induced by construction, blasting, mining, quarry and other operations. Since these vibrations can cause damage to property and structures, local, state and federal regulations govern the levels of vibration these activities can create. Monitoring the vibration levels with an Instantel geophone can help you adjust your vibration inducing activities before these limits are reached and concerns develop. It can also serve as a record that to protect you against future claims and liability.

The High Frequency Geophone for the Minimate Pro monitor is designed to measure frequency ranges from 30 to 1000 Hz. Vibration levels dissipate as they travel farther away from the blast. When measuring vibrations for blast design, you need a geophone that can measure closer to the blast. As you get closer to the vibration source, the frequencies increase. Recording the vibration with a High Frequency Geophone ensures that you capture all of the required frequencies.

The Vibration Dose Value (VDV) Geophone from Instantel measure vibrations between 1 and 80 Hz. It conforms to industry standards for human exposure to vibration. When vibration levels are high enough, they can have adverse health effects on human beings such as chronic fatigue, numbness or joint pain. Repeated exposure to vibrations can have similar effects. The VDV Geophone provides more resolution in your data and ensures that your VDV calculations are within limits. For construction companies or transit authorities, it can serve as proof that your activities were not adversely impacting neighbor building occupants.

Each Instantel geophone is designed with an aluminum housing that stands up to the toughest conditions, they are designed to withstand long-term installations. The geophone can be bolted directly to hard surfaces or it can be spiked into a soft surfaces. The geophone connects directly to the color-coded geophone port on the Micromate monitoring unit and comes in cable lengths of 2m or 5m. While these cable lengths are standard, Instantel also offers custom cable lengths up to 1000 meters.

 ISEE GeophoneDIN GeophoneVibration Dose Value GeophoneHigh Frequency Geophone
Product NameISEE GeophoneDIN GeophoneVibration Dose Value GeophoneHigh Frequency Geophone*
Compliance StandardISEE 2011 EditionDIN 45669-1 Class 1DIN 45669-1 Class 1N/A
Frequency Range2 to 250 Hz1 to 315 Hz1 to 80 Hz30 to 1000 Hz
Measurement RangeUp to 10 in/sUp to 10 in/sUp to 10 in/sUp to 100 in/s

Meet the world’s first smart geophone.

The Micromate SmartGeos are triaxial, to measure ground vibration in three planes: transverse, vertical and longitudinal. The SmartGeo can detect its position and automatically level and orient for accurate readings every time! Never again will you have to level your geophone, worry about specialized mounting equipment or keep track of which geophone is vertical mount and which is horizontal mount. The SmartGeo reduces the time and money you spend on installations.

There are two SmartGeos for the Minimate Pro monitoring unit. One that meets ISEE specifications and one that meets the DIN specifications. The lids of the geophone are color-coded for easy identification: silver for ISEE and blue for DIN. The cast aluminum housing of the SmartGeo can be bolted directly to hard surfaces or spiked in soft surfaces. The SmartGeo connects directly to the color-coded geophone port on the Micromate monitoring unit and comes standard in cable lengths of 2m or 5m. Custom cable lengths of up to 75m are also available. The SmartGeo is calibrated independently of the monitoring unit. It can work with any Micromate unit – making the SmartGeo the ultimate spare geophone.

 ISEE SmartGeoISEE SmartGeo
Product NameISEE SmartGeoDIN SmartGeo
Compliance StandardISEE 2011 EditionDIN 45669-1 Class 1
Frequency Range2 to 250 Hz1 to 315 Hz
Measurement RangeUp to 10 in/sUp to 10 in/s
ISEE Borehole Geophone

The triaxial Borehole Geophone is lowered into a borehole to measure ground vibration in three planes: vertical, transverse and longitudinal. Vibrations from construction activities, blasting and other applications can travel through the ground and cause damage to underground structures. The Borehole Geophone can be lowered into a hole to monitor the effects of the vibration directly next to the structure without the need for regression analysis. Monitoring vibrations with an Instantel geophone can prevent any damage done to underground sewers, tunnels, gas lines or other structures.

The High Frequency Borehole Geophone for the Minimate Pro monitor is designed to be lowered into a borehole and measure frequency ranges from 30 to 1000 Hz. Vibration levels dissipate as they travel farther away from the blast. As you get closer to the vibration source, the frequencies increase. When monitoring vibrations in a tunnel or mine, blasting, digging and other activities can take place in close proximity to other tunnels. Using a High Frequency Borehole Geophone, you can measure directly beside a tunnel or structure that is close to the vibration source. Recording the vibration with a High Frequency Borehole Geophone ensures that you capture all of the required frequencies.

The Minimate Pro Borehole Geophones are rugged and water resistant. The internal sensors are mounted in an aluminum case which is filled with epoxy to protect against contaminants commonly found in boreholes, like water, dust or dirt. The Micromate Borehole Geophone comes in two standard cable lengths: 100 feet and 250 feet. The Borehole Geophone can also be custom built with up to 1000 meters of cable. It is compatible with any Micromate monitoring unit and can be calibrated to meet industry standards like the International Society of Explosive Engineers (ISEE) and DIN.

The Minimate Pro Borehole Geophones come in two cable lengths, 100 feet and 250 feet.

Product NameISEE Borehole GeophoneDIN Borehole GeophoneHigh Frequency Borehole Geophone*
Compliance StandardISEE 2011 EditionDIN 45669-1 Class 1N/A
Frequency Range2 to 250 Hz1 to 315 Hz30 to 1000 Hz
Measurement RangeUp to 10 in/sUp to 10 in/sUp to 100 in/s

There are three microphones designed for the Minimate Pro monitoring unit, so you can synchronize the recording of vibration with air overpressure or sound/noise.

The Linear Microphone is designed to measure air overpressure typically produced from blasting activities. Air pressure changes produced by blasting or demolition can be damaging to nearby structures. When levels are high enough, air overpressure can break windows, damage electronic equipment and set off car alarms. Understandably, when a home or building owner hears their windows rattle, they believe that their property is being damaged. The Minimate Pro Linear Microphone is designed to monitor these changes on a linear scale so you can be sure you are within industry guidelines. Recording of air overpressure can also be a best practice for construction companies, mines and quarries to protect against complaints or liability claims.

Similar to the Linear Microphone, the High Pressure Microphone measures air overpressure levels. Blasting in confined spaces, like mines or tunnels, can amplify the effects of the air overpressure. Extreme levels of air overpressure can even blow the doors off shafts. The High Pressure Microphone can record high air overpressure levels at up to 69 kPa (10 psi) on a frequency range from 5 to 1000 Hz. Recording with the High Pressure Microphone ensures that you measure all of the require frequencies.

The Sound Level Microphone for the Minimate Pro, also called a noise microphone, can perform unattended monitoring of noise in applications such as construction, traffic and quarries or open pit mining operations. Safe guidelines have been developed which provide limits on the level of noise that can be induced in urban environments or to protect the safety of nearby workers. The Sound Level Microphone meets the requirements for IEC 61672 Class 1 specifications, which include A and C weighted specifications. When combined with THOR’s advance analysis tools, the Minimate Pro can be configured to record at samples rates up to 65 kHZ. Recording at 65 kHZ, the Minimate Pro can play back sound clips recorded with the Sound Level Microphone.

The microphones for the Micromate connect directly to the color-coded microphone port on the monitoring unit. Each microphone comes with metal microphone stand for mounting and a 2m or 5m cable. Custom cable lengths of up to 75 m are available upon request.

 Minimate Pro Linear MicMinimate Pro Sound MicMinimate Pro High Pressure Mic
Product NameLinear MicrophoneSound Level MicrophoneHigh Pressure Microphone*
DescriptionMeasures air overpressure on a linear scale.Measures noise or sound levels.Meausres air overpressure from close in or confined blastiing activities.
Compliance StandardISEE 2011 EditionIEC 61672 Class 1ISEE 2011 Edition
Frquency Range2 to 250 Hz10 Hz to 20 kHz5 to 1000 Hz
Measurement Range100 to 148 dB (0.00029 to 0.0725 psi)30 to 140 dBUp to 69 kPa (10 psi)
Minimate Pro Hydrophone

The Hydrophone for the Minimate Pro measures overpressure activity underwater. Overpressure, typically produced by blasting activities, can damage underwater structures and ecosystems. They can also cause behavioural or physiological changes in fish and other marine mammals. Potential effects can negatively impact their health and reproduction. To ensure that you are within environmental regulations the Hydrophone can measure pressure changes up to 47 psi. Four hydrophones can be connected to the Minimate Pro4 and up to six on the Minimate Pro6.

Installation is easy – just connect the Hydrophone to a Minimate Pro monitoring unit and then drop it into the water. Whether you are in calm or turbid water, the Hydrophone will take an ambient pressure reading and then record any changes to that pressure. With sensors encased in a high impact polyurethane, the Hydrophone is designed to handle maximum depths of 250 feet.

Since overpressure can be higher in frequency but short in duration, Instantel recommends the sampling rate for the hydrophone be set to 65,536 Hz on the Minimate Pro unit. THOR’s advanced features are required to program the 65 kHz.

Click here for more information on Instantel’s underwater monitoring solutions.

Product NameHydrophone
Frequency Range8 to 500 Hz
Amplitude RangeUp to 47 psi (324 kPa)

Each Accelerometer measures vibration in one plane. The Accelerometer can be oriented to measure either transverse, vertical or longitudinal vibrations. Accelerometers are small and can be used in applications where a geophone cannot be mounted. Instantel Accelerometers have even been mounted on museum exhibits and historical artifacts to ensure that the construction outside the building does not negatively impact the items inside the building. There are three Accelerometers for the Minimate Pro monitoring unit. Each Accelerometer has a unique amplitude range varying from 0.5g to 500g.

The 0.5g Accelerometer measures low frequencies and accelerations for sensitive monitoring applications including computer rooms, integrated circuit manufacturing, optical balances or electron microscopes. The 50g and 500g high frequency Accelerometers measure acceleration up to 50g or 500g for near field blasting applications.

When you need to record acceleration in three planes, the Accelerometer Mounting Block can be used to connect up to three uniaxial accelerometers in a triaxial configuration. The Accelerometer Mounting Block provides flexibility for installation configurations. With the Accelerometer Mounting Block, you can mount one, two or three accelerometers depending on what planes you need to monitor. The Accelerometer Mounting Block can be bolted directly to the structure you need to monitor.

THOR’s advanced analysis features are required to program the Minimate Pro monitoring unit for use with Accelerometers.

 0.5G Accelerometer50G Accelerometer500G Accelerometer
Product Name0.5g Accelerometer50g Accelerometer500g Accelerometer
Frequency Range0.5 to 500 Hz1 to 3000 Hzt to 300 Hz
Measurement Range0.5G50G500G
Maximum Shock Limit10g2000g2000g

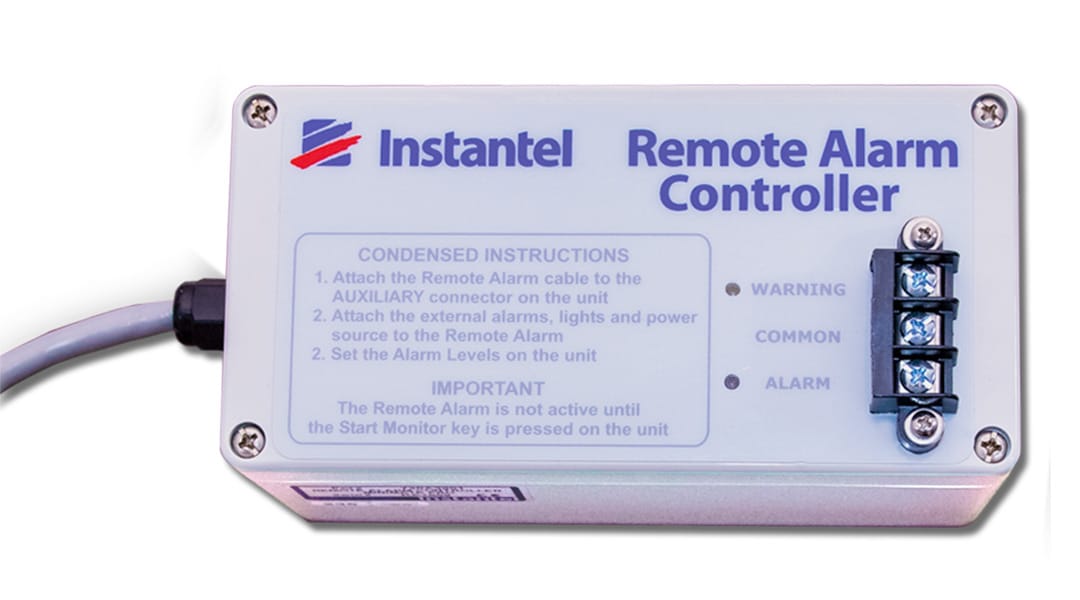

Minimate Pro Remote Alarm

The Remote Alarm Controller is used to indicate when the Minimate Pro unit has exceeded the trigger levels you’ve configured. When you connect lights or sirens to the Remote Alarm controller, you can receive audible or visual alerts that your activities are near or have exceeded the trigger levels. Trigger levels on the Minimate Pro can be set based on your project’s requirements and can be different for each job. With an early warning system, you can manage vibration or noise inducing activities before concerns develop.

The Remote Alarm Controller connects to the auxiliary port on the Minimate Pro monitoring unit. The Remote Alarm Controller comes complete with a 2 m (6.5 ft) cable but it can also be used with Instantel’s 30 m (100 ft) or 75 m (250 ft) extension cables.

Instruction Sheet

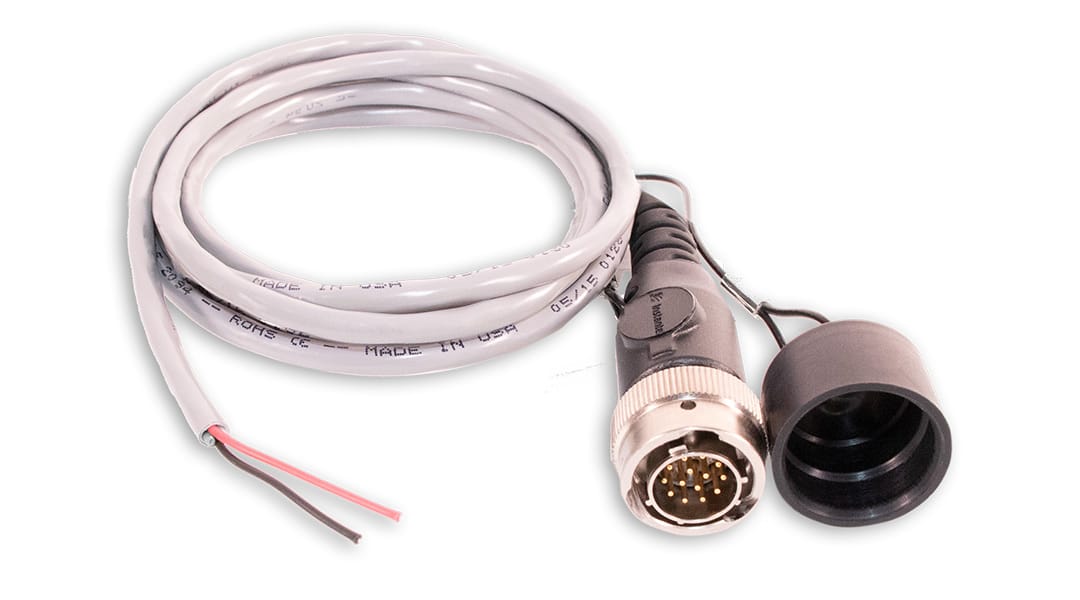

Minimate Pro Wire Trigger

The Wire Make/Break Trigger Cable can be used to remotely trigger a Minimate Pro unit or to synchronize the triggering of up to six units. At the end of the Wire Make/Break Trigger Cable there are two leads. A change in the state of these leads will cause the Minimate Pro unit to start monitoring. They can be connected to start and once that connection is broken, the unit will start to record, or they can be separated initially and when they make a connection the Minimate Pro will start to record. The External Trigger Cable connects to the auxiliary port on the Minimate Pro unit and comes complete with a 2 m (6.5 ft) cable.The External Trigger Cable can also be used with Instantel’s 30 m (100 ft) or 75 m (250 ft) extension cables.

Application Examples

  • Twist the two leads together and use an energy source, such as a blast, to break the two leads apart, triggering the Minimate Pro unit to start recording. Typically, the two leads are tied together and then wrapped around a detonator or explosive before being lowered into a borehole. When the explosives detonate, the two leads on the external trigger cable will break apart and automatically trigger the unit to start recording. This will give you time 0 or when the blast started. As each hole in the blast design is detonated it will create a peak in the waveform. Using time 0, you can calculate the time between each peak and compare it to the time delays between each hole and row in your blast design. You can then use this data to help you design a more controlled and precise blast.
  • Velocity propagation of the rock is a key part of blast design. Using the External Wire Trigger Cable you can measure accurate velocity propagation values from the rock you are blasting. The External Wire Trigger Cable can be used to synchronize event recordings on up to six Minimate Pro monitoring units. After connecting an External Trigger Cable to each unit and tying their leads together, when one Minimate Pro unit is triggered and begins recording, the other connected Minimate PRo units will also begin to record. The time it takes for the vibration to travel from one Minimate Pro unit to the next can be used to get an accurate velocity propagation value.



Instruction Sheet

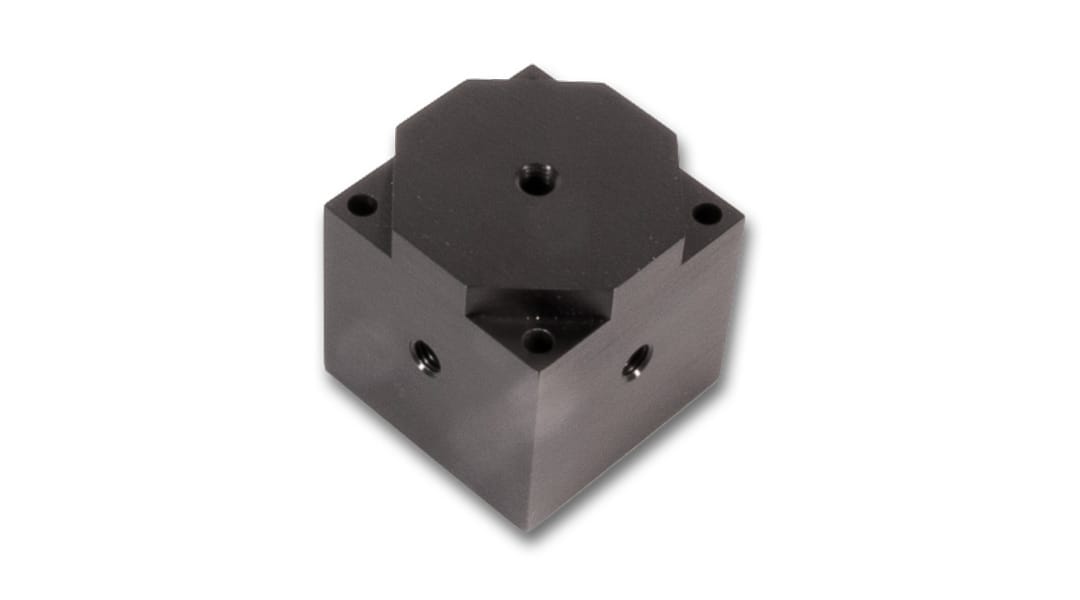

The Accelerometer Triaxial Mounting Block can be used to install uniaxial 50 g or 500 g high level accelerometers in a triaxial configuration.

The uniaxial accelerometers are mounted on the Triaxial Mounting Block in the transverse, vertical and longitudinal positions. Use an adaptor cable, the three accelerometers can then be connected to the geophone port on the Minimate Pro monitoring unit for synchronized readings of all three directions

Instruction Sheet
